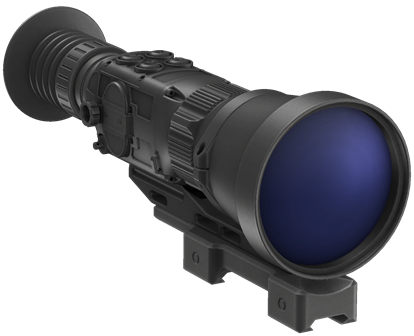

Engineered to excel with small and large-caliber rifles, as well as machine guns, this advanced sight stands as a pinnacle of excellence, empowering operators with unrivaled performance in single or repetitive shooting scenarios. Additionally, it serves as an indispensable tool for tactical reconnaissance and surveillance missions. At the core of the TI-GEAR-S lies the latest generation sensor, a testament to GSCI’s unwavering commitment to technological advancement. Surrounding this cutting-edge sensor, GSCI’s proprietary hardware and software solutions coalesce to deliver unparalleled image quality, while bestowing unique tools that confer tactical advantages and ensure user safety.
Unyielding in its durability, the TI-GEAR-S is fully dust- and waterproof, surpassing the stringent standards set by modern MIL specifications. With unwavering reliability as its foundation, this thermal weapon sight thrives in the face of long-term, intensive use across any environment, be it challenging lighting conditions or harsh weather scenarios.
The TI-GEAR-S epitomizes GSCI’s dedication to providing professionals with a superlative thermal imaging weapon sight, redefining the parameters of excellence.
- FPA Refresh Rate: 9Hz or 50Hz
- 12-micron and 17-micron FPA Options
- Digital Zoom: 2X, 4X
- Display: Full Size: 0.6-Inch, AMOLED, Colour, 800×600
- Imaging Modes: Monochrome + 8 Colour Palettes
- Conversion to Clip-On Sight (TI-GEAR-C): Yes
- Electronic Reticle: Yes: 8+8 Patterns
- Digital Video Recorder: Optional – Built-In or External
- Compass: Optional
- Inclinometer: Optional
- Gyroscope: Optional
- Adjustable Shock Sensor: Yes
- Power Source: 2x CR123 and External (e.g. MVP-240™)
- Battery Life: Up to 7 hours on 2xCR123 or up to 15 hours with MVP-240™
- Operating Temperature: -40°C .. +50°C
- Manufacturer’s Warranty: 7 Years, Limited
Optical Magnification: 5.7X
Objective Lens System: 100mm
Field of View: 4.4° x 3.3°
Focusing Range: 5m .. Infinity
Diopter Adjustment Range: -6 .. +4
Eyerelief: Min. 40mm
FPA Type: Uncooled VOc Detector
FPA Resolution and Pitch: 640x480, 12μm
FPA Sensitivity (NETD): <40mK
FPA Refresh Rate: 50Hz
Digital Zoom: 1X, 2X, 4X
Internal Display: Large Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600
Imaging Modes: Monochrome (White-Hot / Black-Hot) and MultipleColour Palettes
Shot-Initiated FOV Feature (SIF): Built-In Adjustable shot Sensor
Digital Passive Stadiametric Rangefinder (SRF): Yes
Digital Detail Enhancement: Yes
Wide Dynamic Range Feature(WDR): Yes
Stow Safety Feature (SSF): Yes
Integrated 9-Axis AbsoluteOrientation HUD (Heads-UpDisplay): Optional: 3-Axis Sensors-Magnetometer, Accelerometer and Gyroscope
Integrated Compass: Optional
Pitch / Roll / Azimuth Indications: Optional
Real-Time Date-Time Stamp: Yes: Simplified, Extended, DTG Formats
Electronic Reticles: 8+8 Patterns, Easy Zeroing / Calibration
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m): 4720m / 6385m
Recognition Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m): 1770m / 2395m
Identification Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m): 945m / 1275m
Hand-Held Configuration: Yes
Conversion to Clip-On (In-Line)Sight: Yes
Tripod-Mountable: Yes
User Profiles (Configurable): Yes: 8
Reset to Factory Defaults: Yes
External Video Feed Protection: Yes
Automatic Power Down Control: User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries: 2 (two) CR123 of AnyType: Lithium / Rechargeable
Universal Port: Video-Out, Remote Control and External Power (4VDC.. 15VDC)
Battery Life on 2x CR123: Up to 6 Hours
Environmental Protection: IP67, Nitrogen-Purged Housing
Dimensions: 230 x 85 x 85 mm
Weight: 720 grams
*PAY ATTENTION! This product requires an export license outside the Benelux. We take care of this with the Customs in the Netherlands. The customer only needs to sign an End-Use Statement for the application.*
